BFU-Blow Fan Filter Unit (FFU)

Modular Cleanrooms311

Key Properties

YNClean BFU Blow fan filter unit(FFU) is a ceiling unit with a fan inside, used for turbulent flow and laminar flow clean room. The BFU fan filter unit is one of the quietest and best-priced units on the market.

  • Efficiency: H13~U17
  • Sealing gasket: Sealing gasket in double air supply sides
  • Cabinet: Galvalume sheet, stainless steel or aluminum alloy sheet
  • Media:Moisture-proof ultra-fine glass fiber
  • Max Temperature: Maximum 90°C in continuous service

What is BFU?

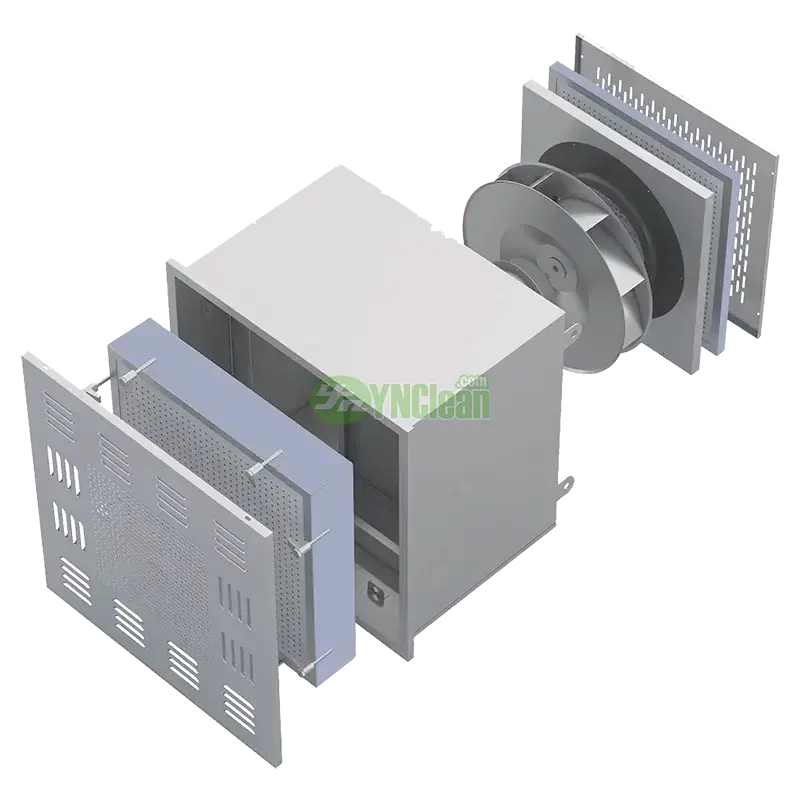

The BFU is an upgraded alternative to the FFU and HEPA Filter Box. It is also a self-contained, modular end air supply with filtered power. BFU adopts the modern large-area new clean room clean safety theory, inhaling air from the top, and then filtering out the air. and It is a ceiling-mounted clean unit to maintain the class of cleanroom, and the desired air volume can be adjusted through the fan & motor. CEILING MOUNT and HANGER types, step control, inverter control, and group control are possible.

Features

Suitable to a variety of clean rooms from Class 10,000 to Class 1. BFU system is convenient and flexible and can be applied to any structure and level of clean room. It can also be used for other cleaning devices, such as portable clean rooms, clean benches, clean corridors, and so on.

Usual Configuration

Item Standard Model/Parameter
YN-BFU-01 YN-BFU-02
Cabinet Dimension(W×D×H)mm 534*534*400 660*660*400
Diffuser Dimension(W×D×H)mm 579*579*16.5 705*705*16.5
HEPA Filter Dimension(W×D×H)mm 484*484*90 610*610*90
Filter Efficiency HEPA >99.95%@µm

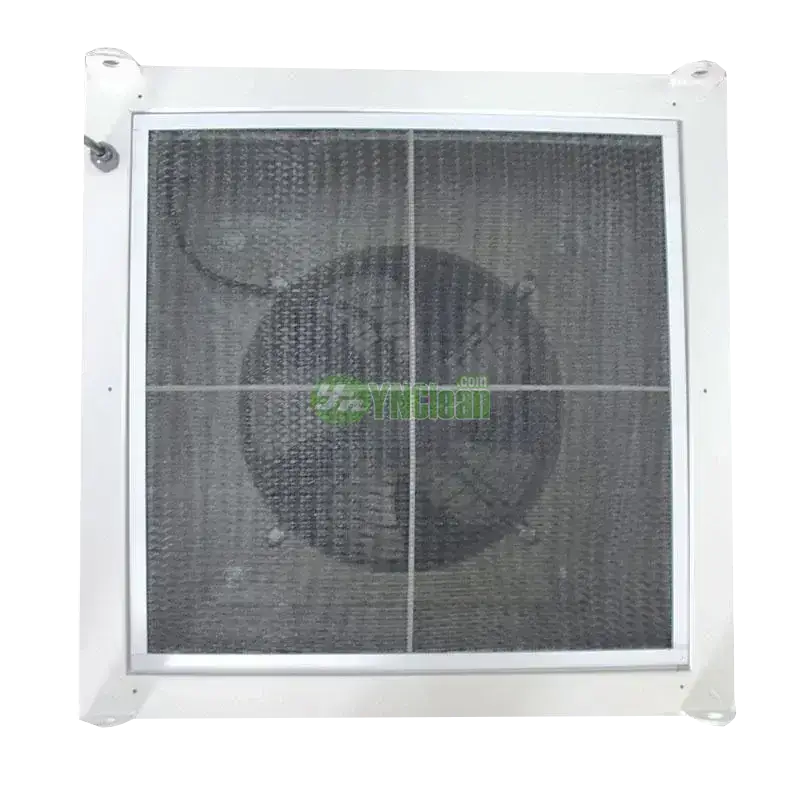

Pre-Filter Nylon Mesh Filter/Safety Net/G3~G4 pre-filter
Pre-Filter Dimension(W×D×H)mm 440*440*10 495*495*10
Air Volume(m³/h) 500 1000
Noise 52~62dB (A)
Initial Pressure 200pa
Fan Power 170Wx1pc
Supply Power AC 1N 220V/50HZ

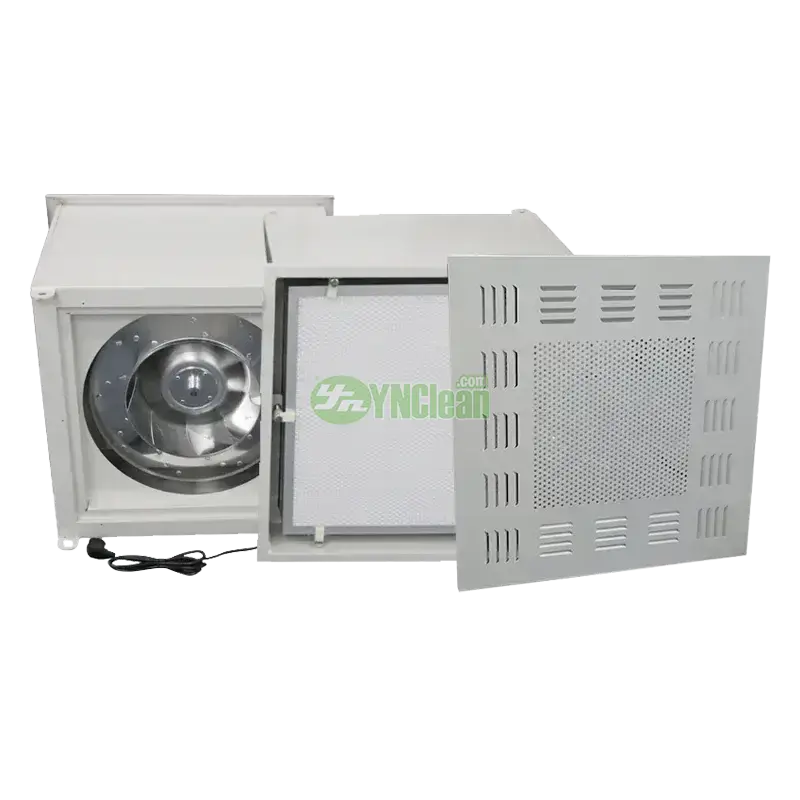

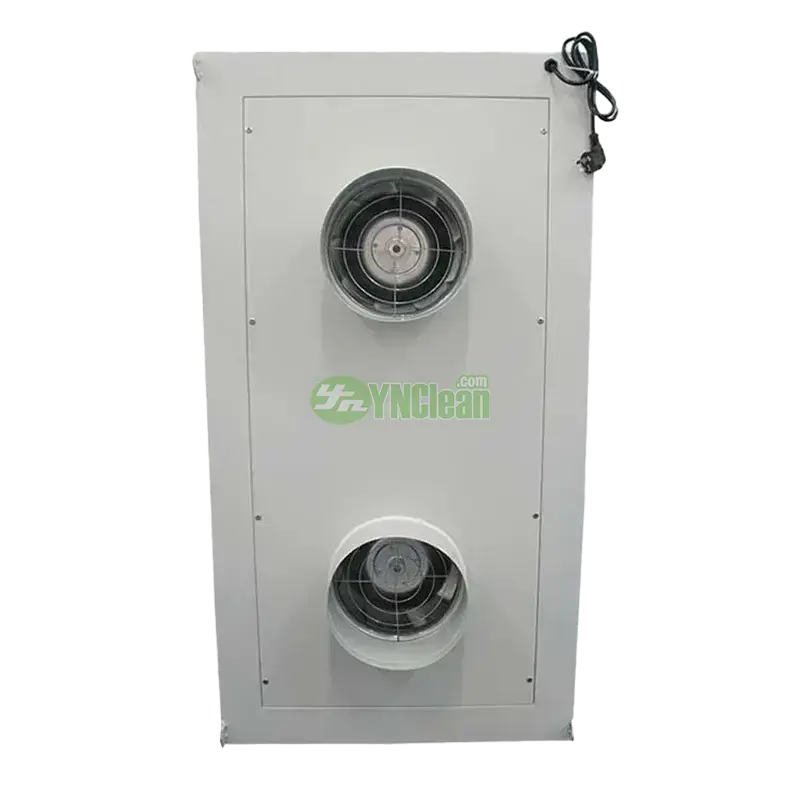

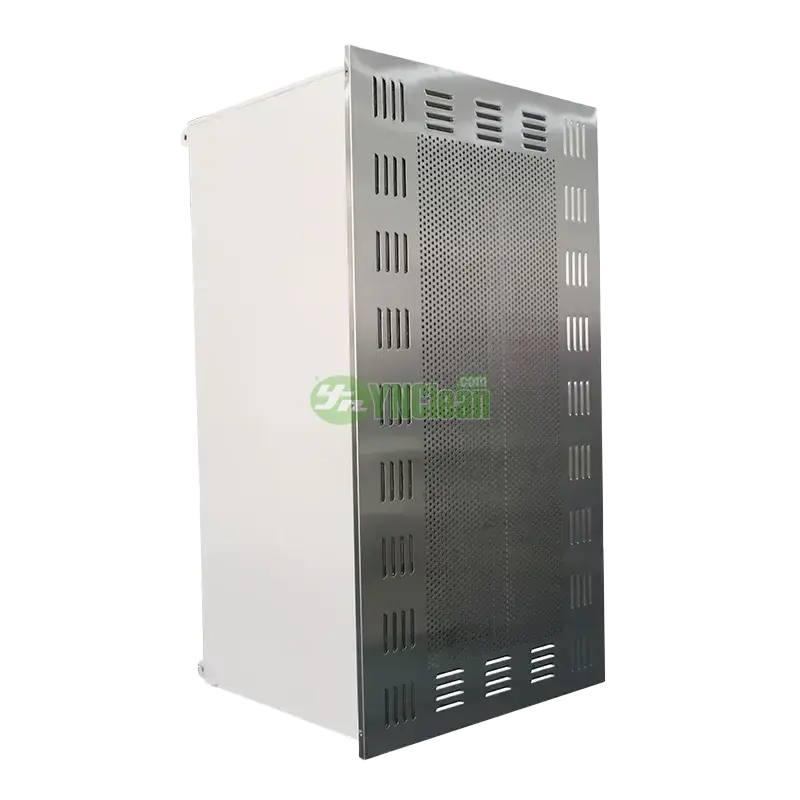

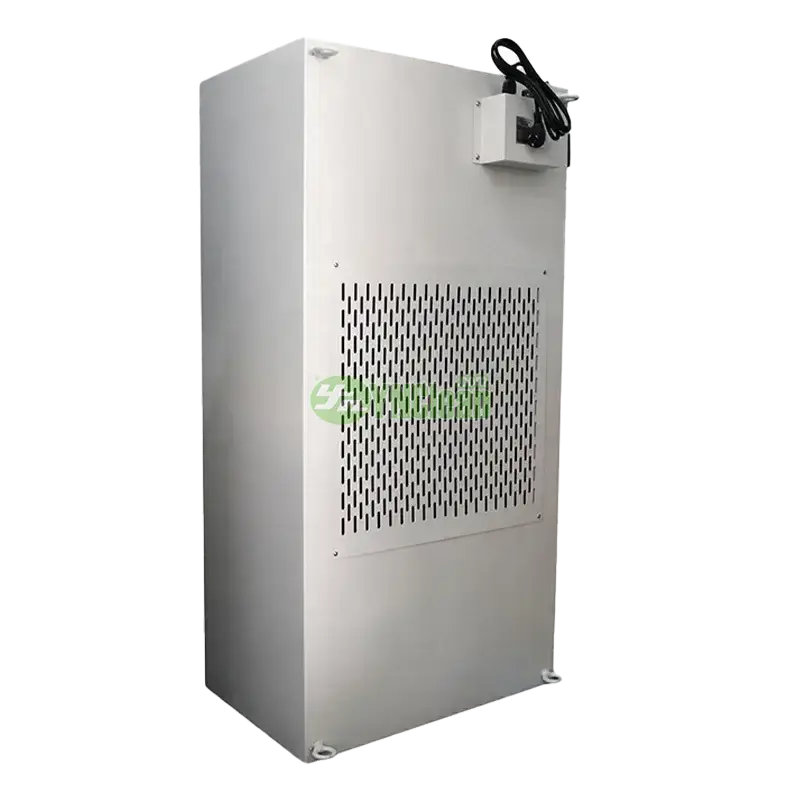

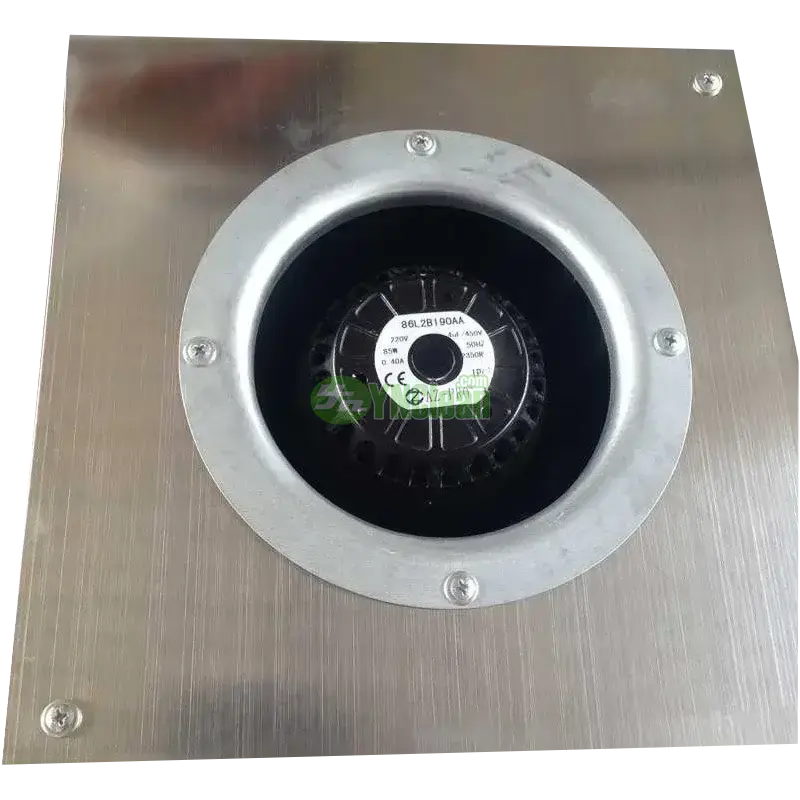

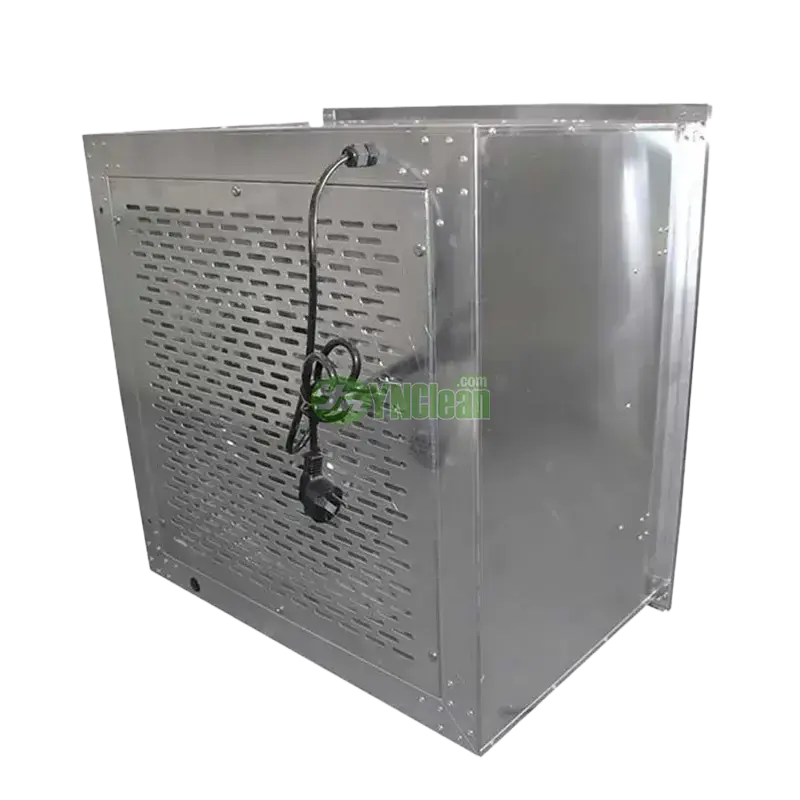

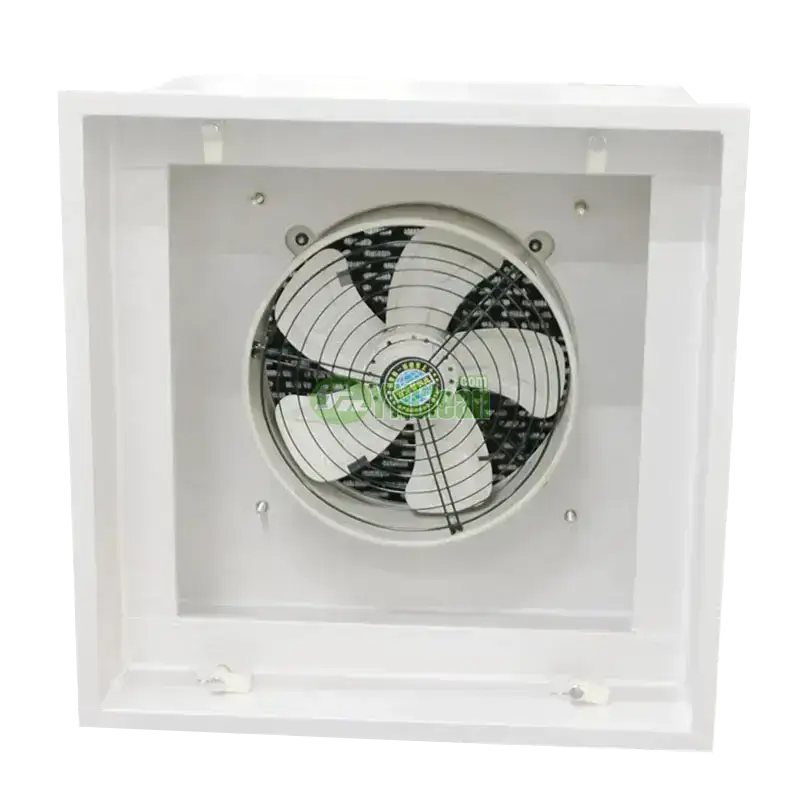

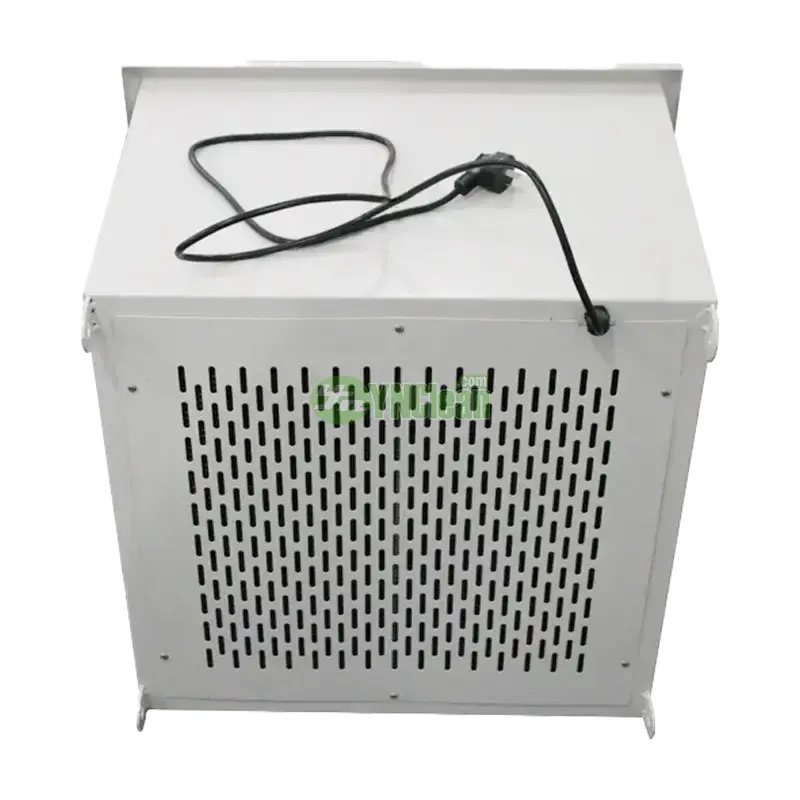

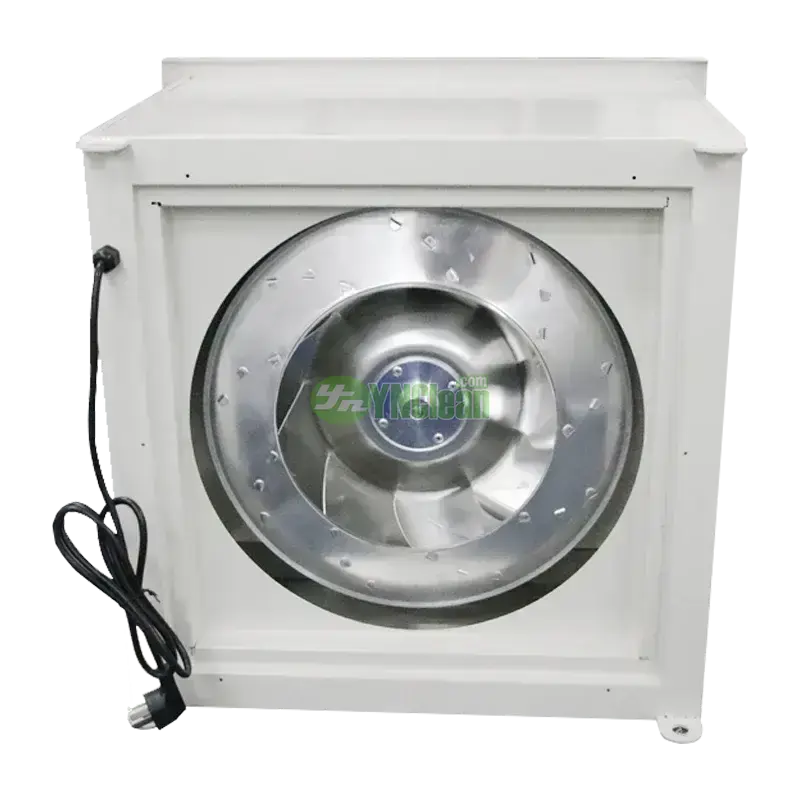

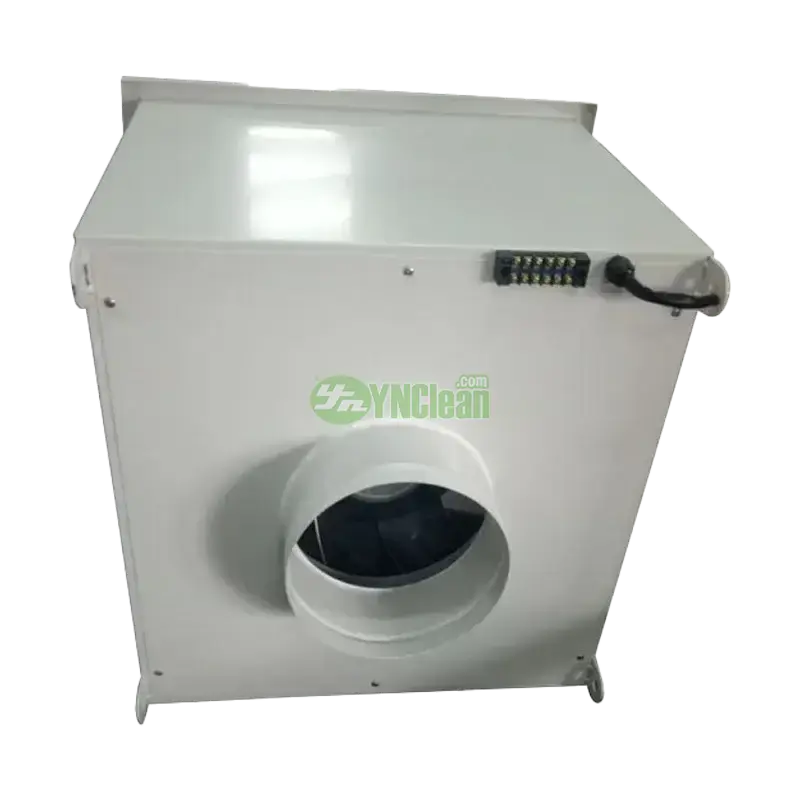

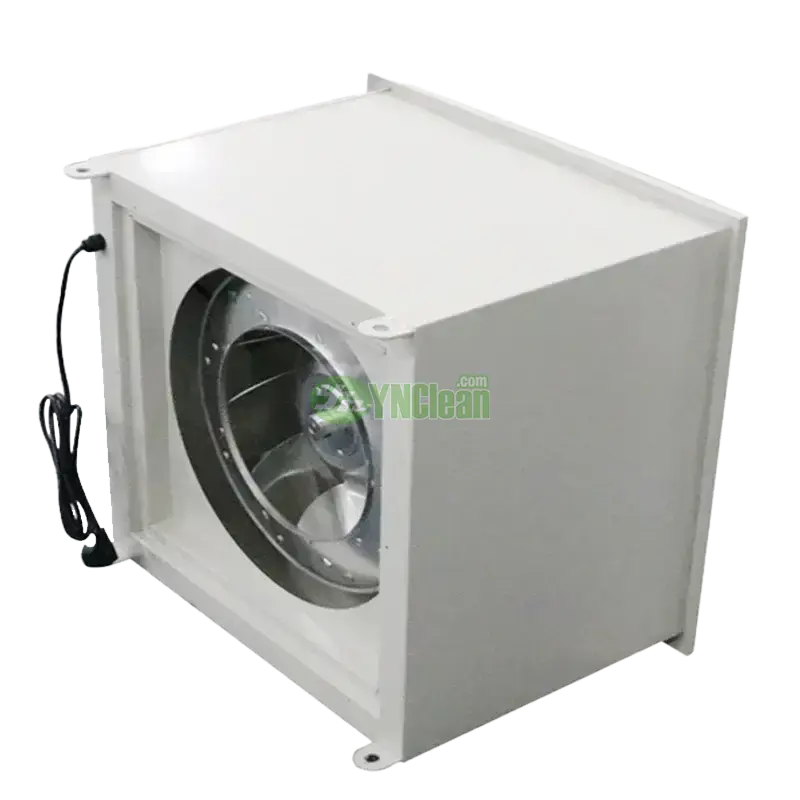

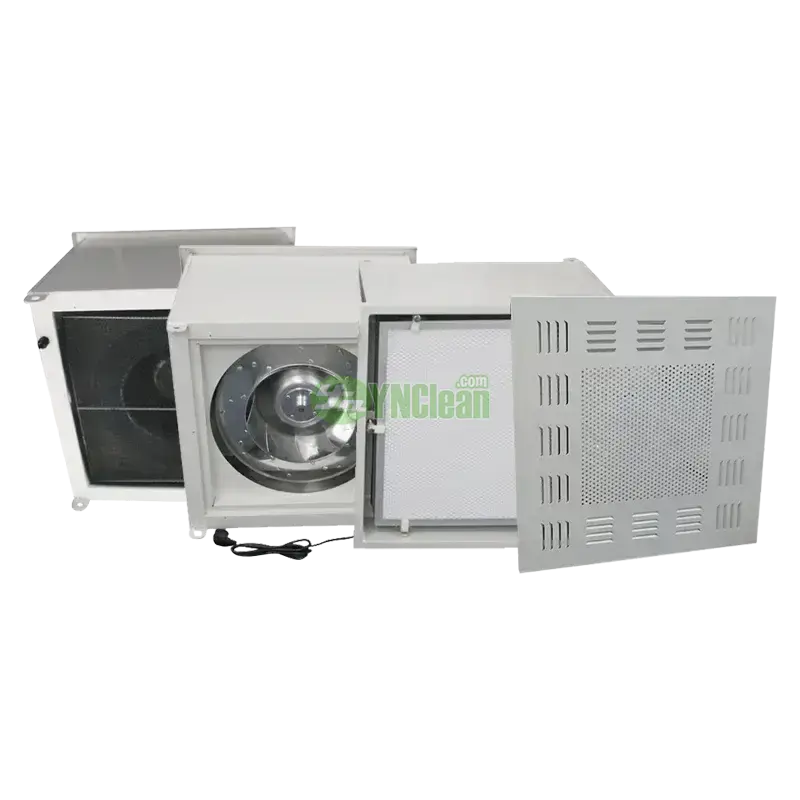

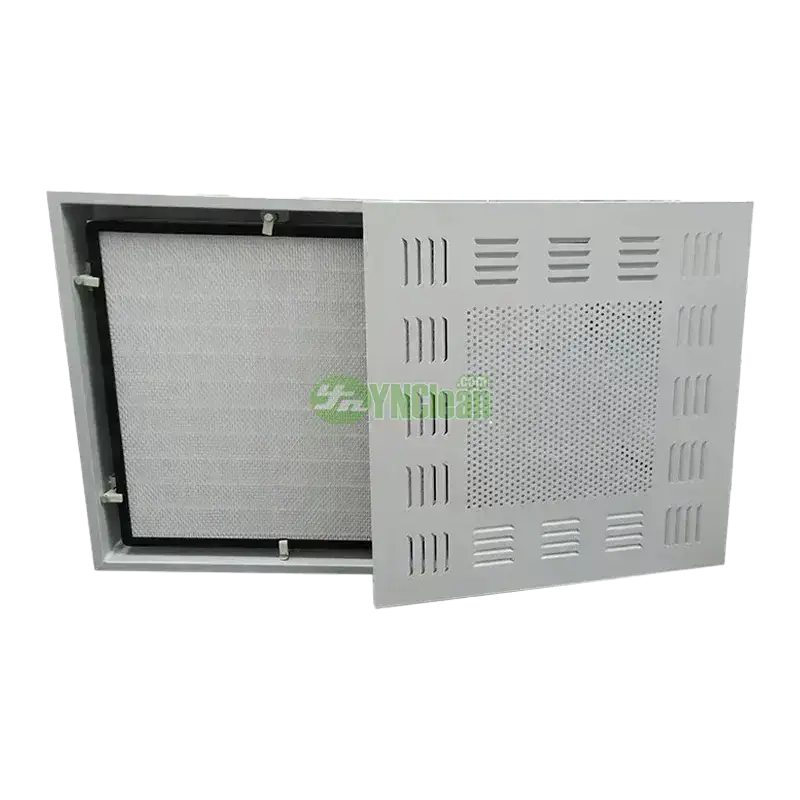

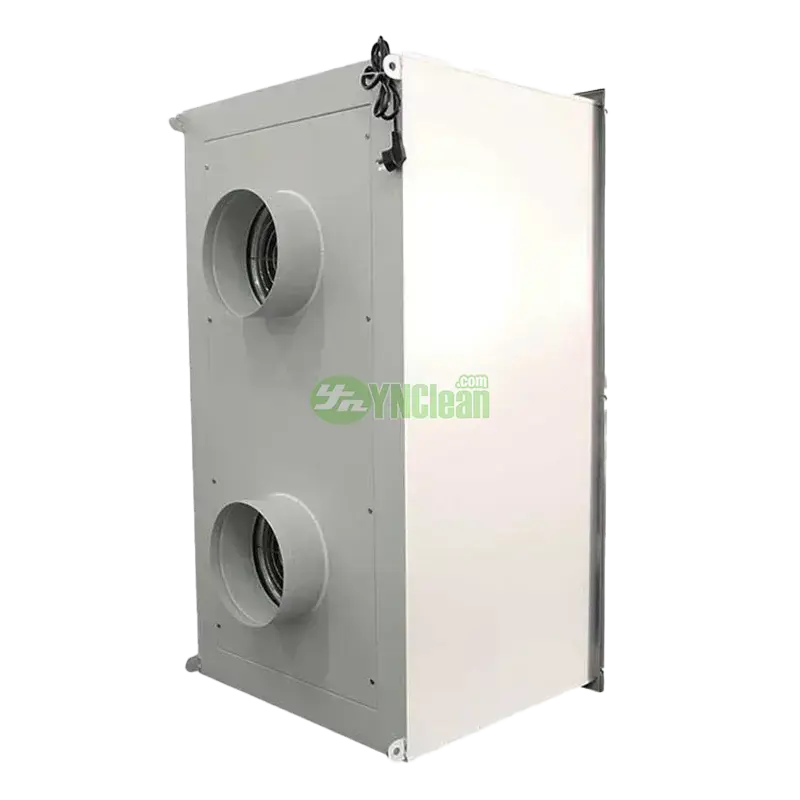

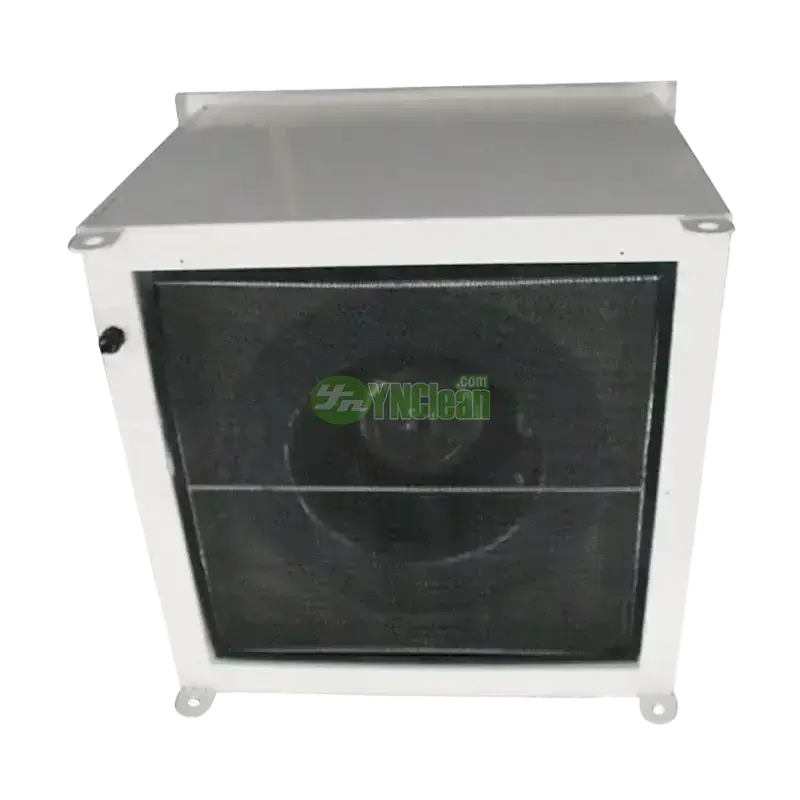

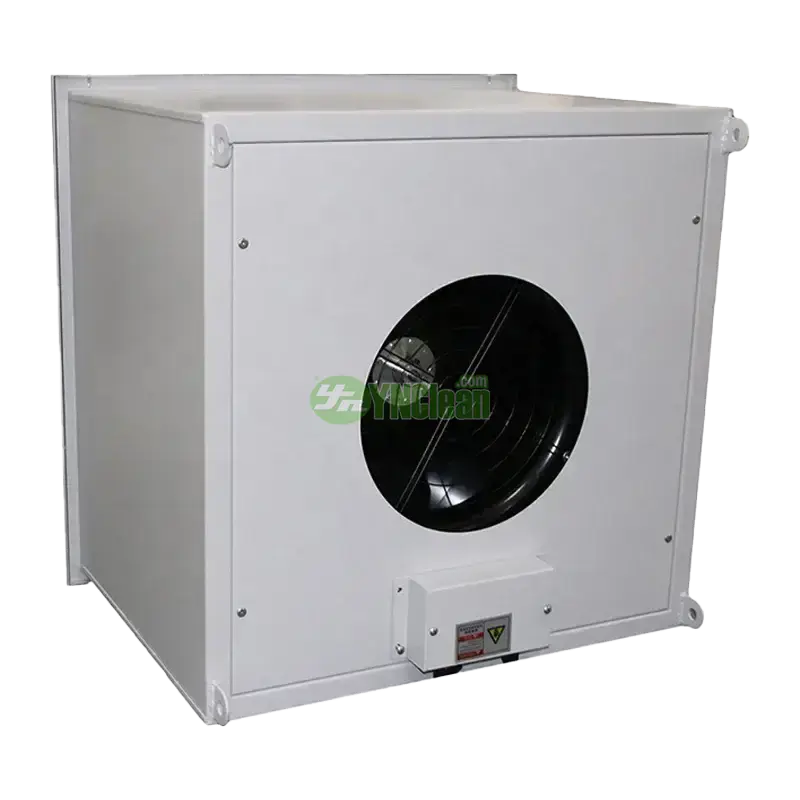

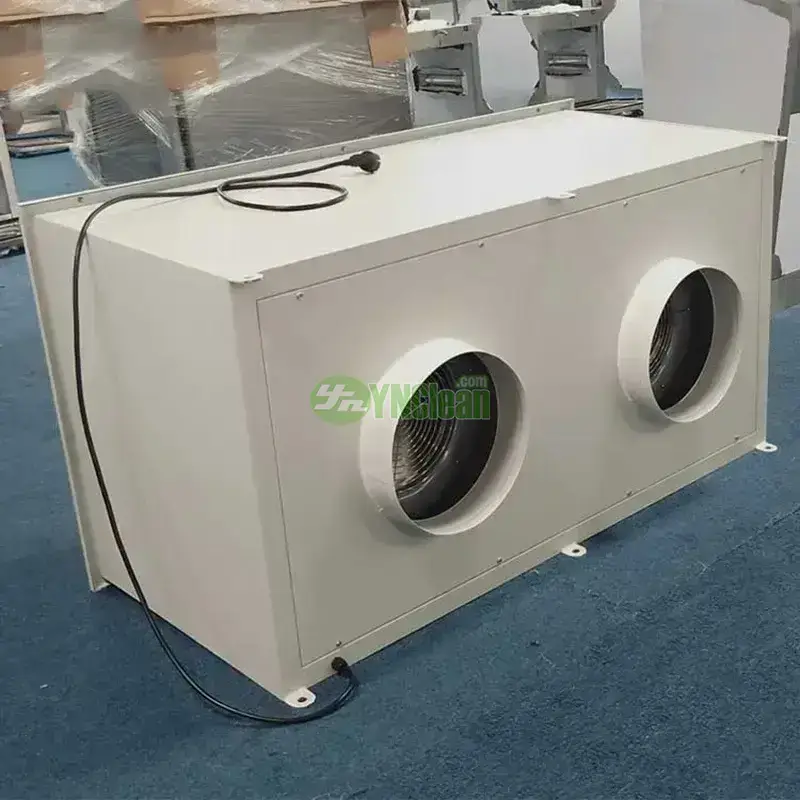

Standard Photos

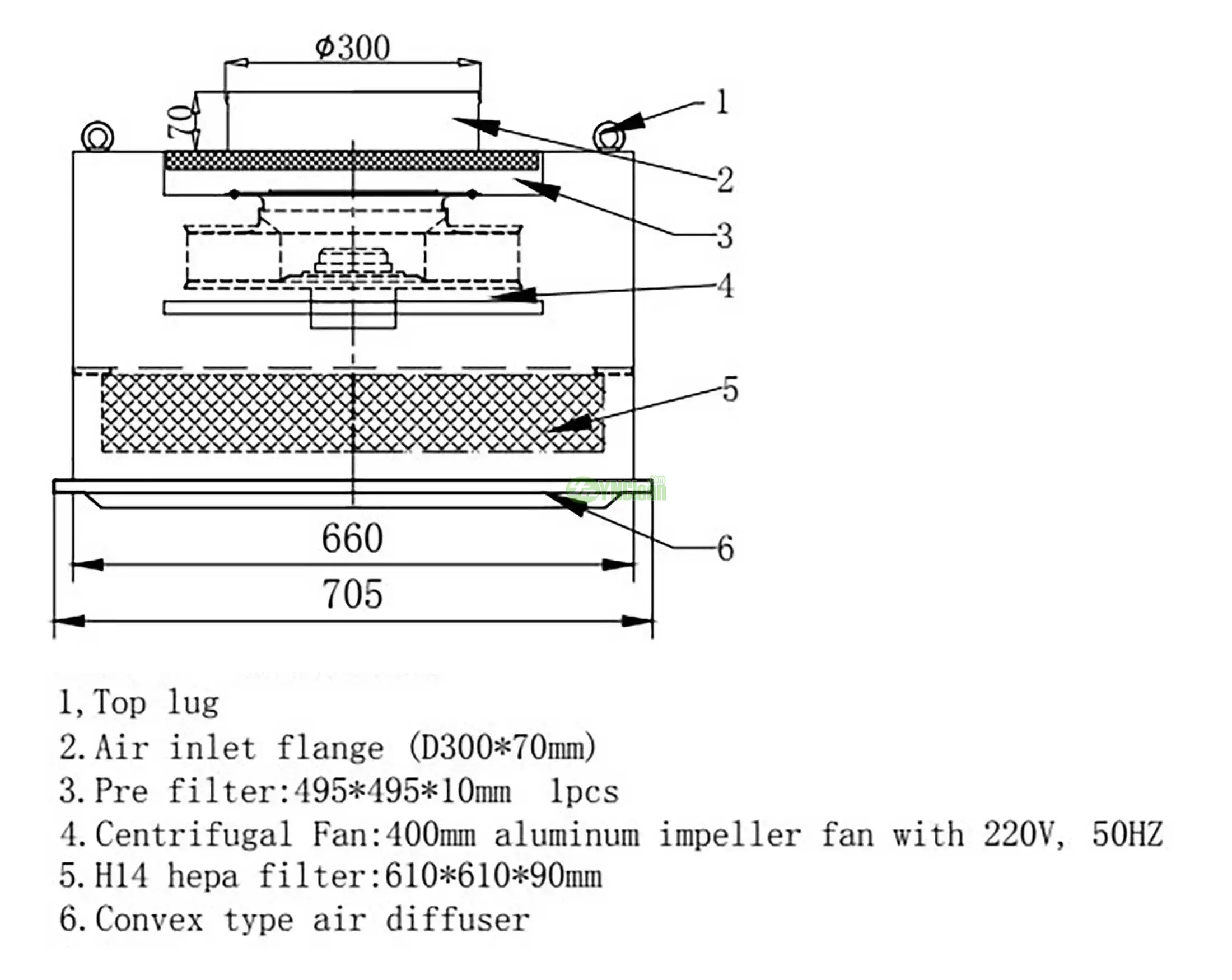

Customization
